Classic electric deck oven
Digital Panel, knob Panel,Micro-Computer Panel,three operation panels for choose,to satisfy with different requirements.
One tray perlayer, Compact and save space.
Economical and easy to operate.
With CE certification.

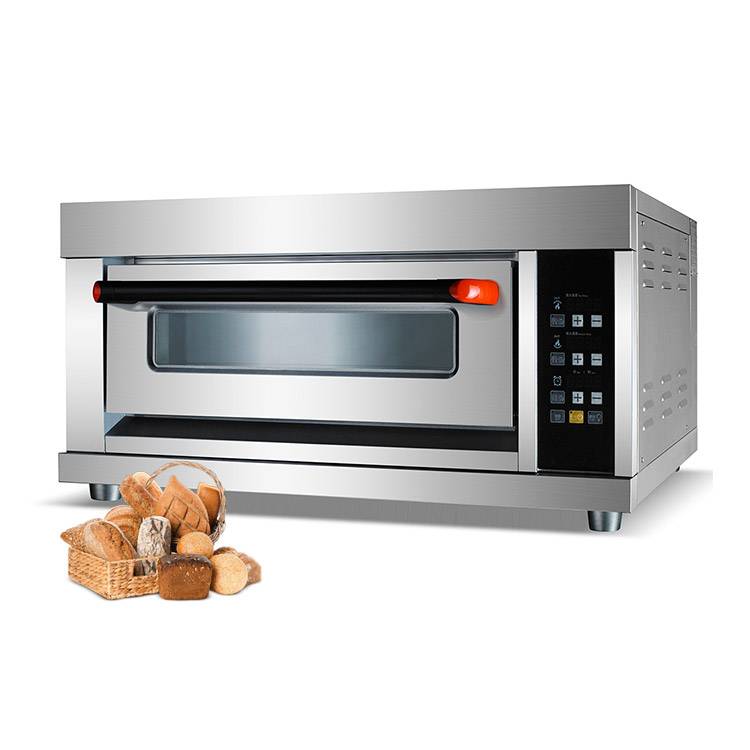

| Model | YCD-1D |
|---|---|
| Power | 3.2KW |
| Size | 895*580*430mm |
| Specification | 1 Deck 1 Tray |
| Voltage | 220/380V |
| Tray size | 400x600mm |
1. Positive stainless steel material, double layer of high temperature resistant tempered glass perspective window, knowledge of product at any time during baking bake effect.
2. Adopted far infrared radiation heating, electric heating tube heat uniform distribution.
3. Independent control upper and lower temperature in the furnace, digital display temperature control system.
One-stop Kitchen Equipment Purchasing

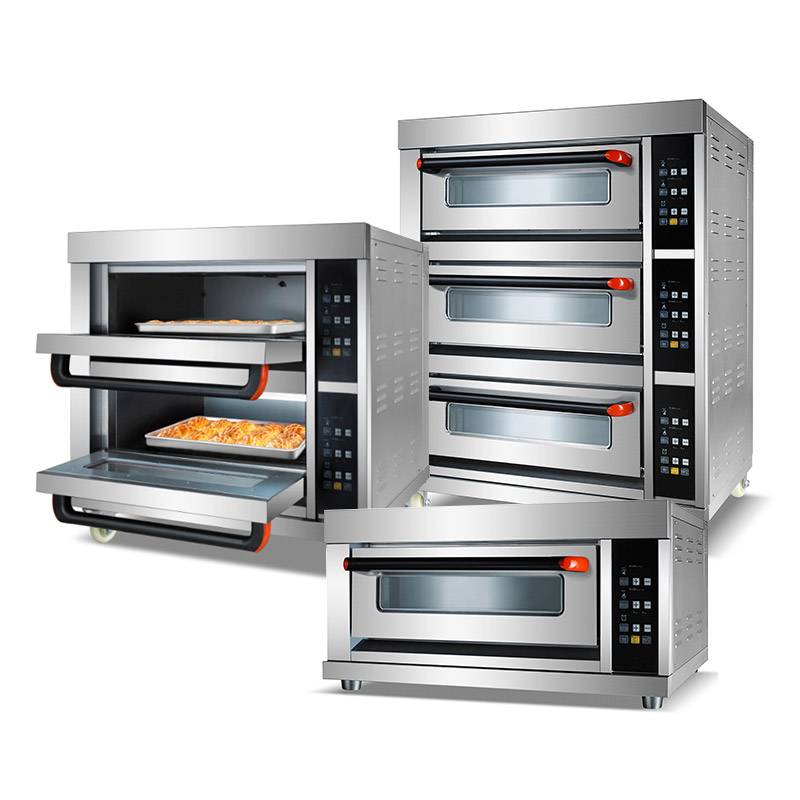

Baking equipment Classic electric deck oven
| Model | Chamber size | Capacity | Size（mm） | Voltage | Power | N.W |
| YCD-1D | 625*410*160 mm | 1 Deck 1 Tray | 895*580*430mm | 220V/50Hz 380V/50Hz | 3.2 KW | 40 KG |
| YCD-2D | 870*630*225 mm | 1 Deck 2 Trays | 1250*820*565mm | 220V/50Hz 380V/50Hz | 6.6 KW | 75 KG |
| YCD-3D | 1305*630*225mm | 1 Deck 3 Trays | 1685*820*565mm | 380V/50Hz | 10 KW | 100 KG |

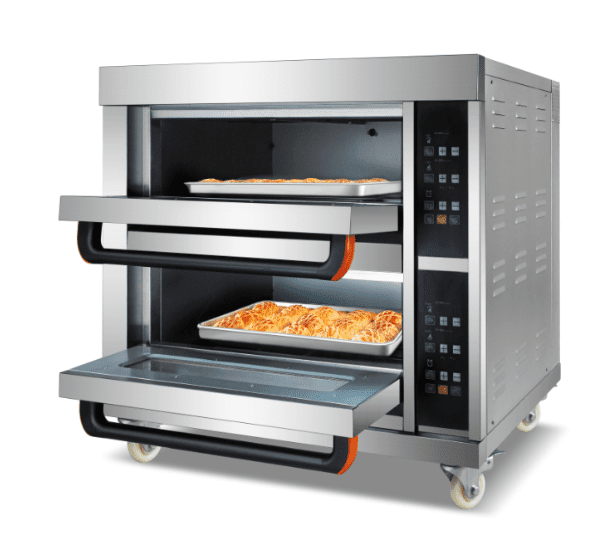

| YCD-2-2D | 625*410*160 mm | 2 Decks 2 Trays | 895x580x810mm | 220V/50Hz 380V/50Hz | 6.4 KW | 68 KG |
| YCD-2-4D | 870*630*225 mm | 2 Decks 4 Trays | 1250*820*1300mm | 380V/50Hz | 13.2 KW | 135 KG |
| YCD-2-6D | 1305*630*225mm | 2 Decks 6 Trays | 1685x820x1060mm | 380V/50Hz | 20 KW | 210 KG |

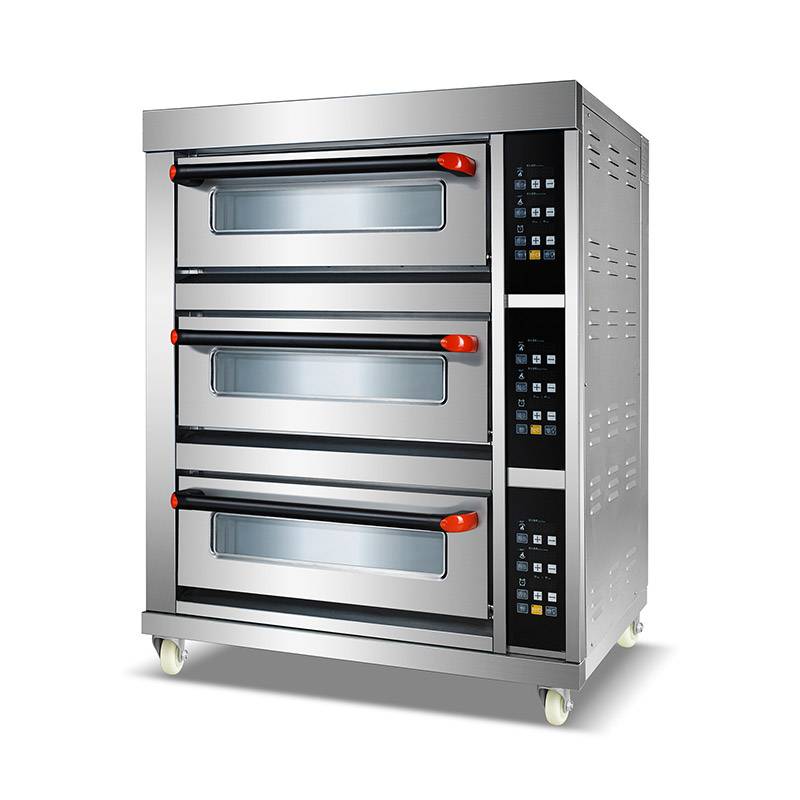

| YCD-3-3D | 625*410*160 mm | 3 Decks 3 Trays | 895x580x1200mm | 220V/50Hz 380V/50Hz | 9.6 KW | 96 KG |
| YCD-3-6D | 870*630*225 mm | 3 Decks 6 Trays | 1250*820*1450mm | 380V/50Hz | 19.8 KW | 170 KG |
| YCD-3-9D | 1305*630*225mm | 3 Decks 9 Trays | 1685*820*1450mm | 380V/50Hz | 24 KW | 230 KG |
| YCD-3-12D | 1305x1030x225mm | 3 Decks 12 Trays | 1685*1020*1450mm | 380V/50Hz | 30 KW | 355 KG |
| YCD-3-18D | 1305x1230x225mm | 3 Decks 18 Trays | 1685*1420*1450mm | 380V/50Hz | 30KW | 450 KG |
| YCD-4-16D | 1305x830x225mm | 4 Decks 16 Trays | 1685x1020x1845mm | 380V/50Hz | 40 KW | 400 KG |
A perfect addition to any restaurant or bakery.
This oven can make pastries, cookies, bread, baked goods or pizza.
Independent controls for each deck give you control over every part of the roasting process, adjusting the roasting time and
adjusting the temperature on the top and bottom of the deck.
Designed in a flexible module system with many options.
Gives each bakery the ability to create the oven that best suits their needs.
Reliable heating elements. Turbo function. Heats up the oven quickly to the set temperature.
Specially selected for relability and rapid response.
Dual temperature sensors. Gives an even bake result.
Each oven section can be individually controlled with separate settings of the top, bottom and front heat. Full control of the baking process.
Radiation cover.
Provides a gentle and even heat radiation. Protects and gives an advantage when baking sweet and delicate products.
Tray grid for even baking on plates.
High quality door gasket and well insulated oven chamber.
Keeps the heat inside the oven.
Precision-built oven doors.
Gives the door a smooth action and ensures convenient and safe handling.
